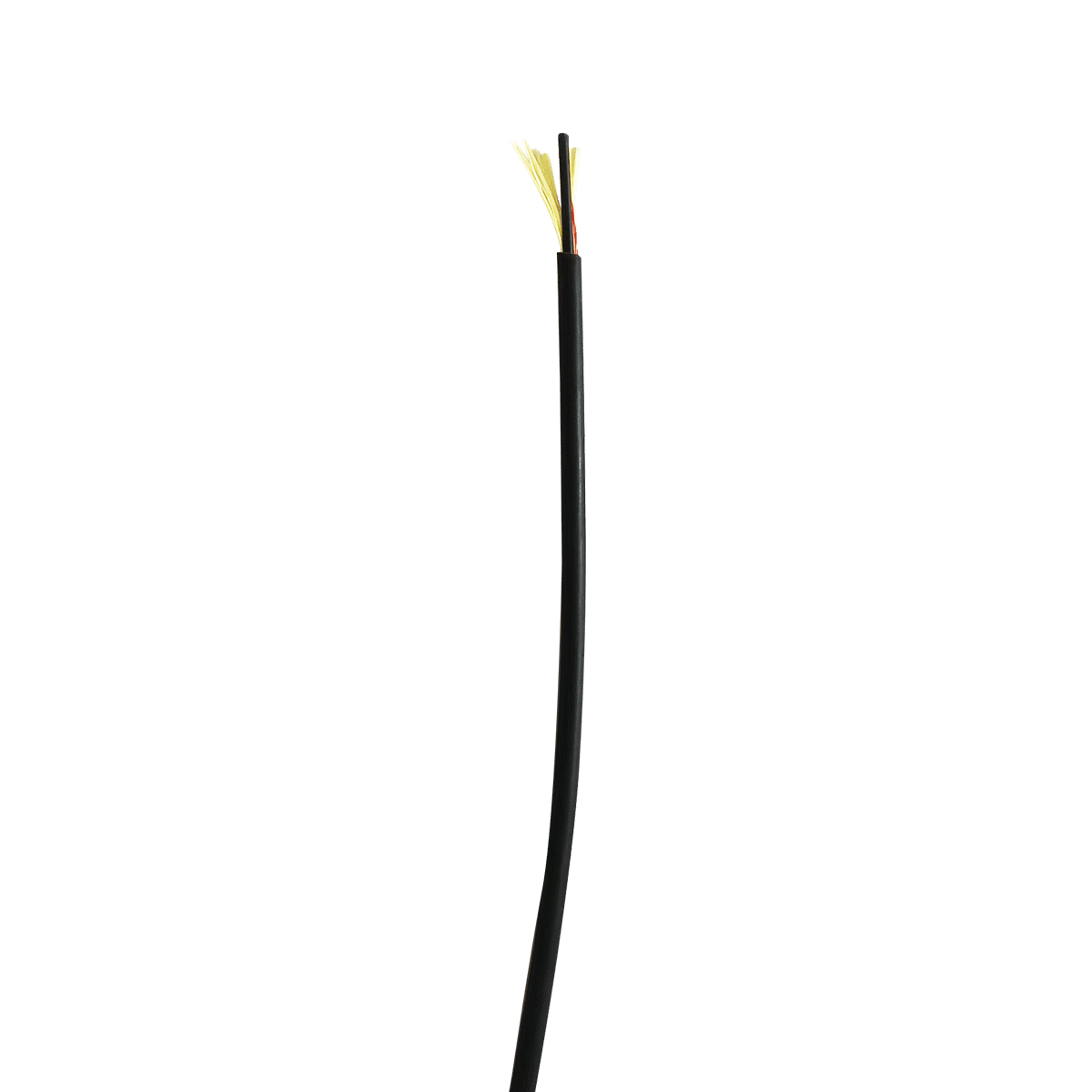

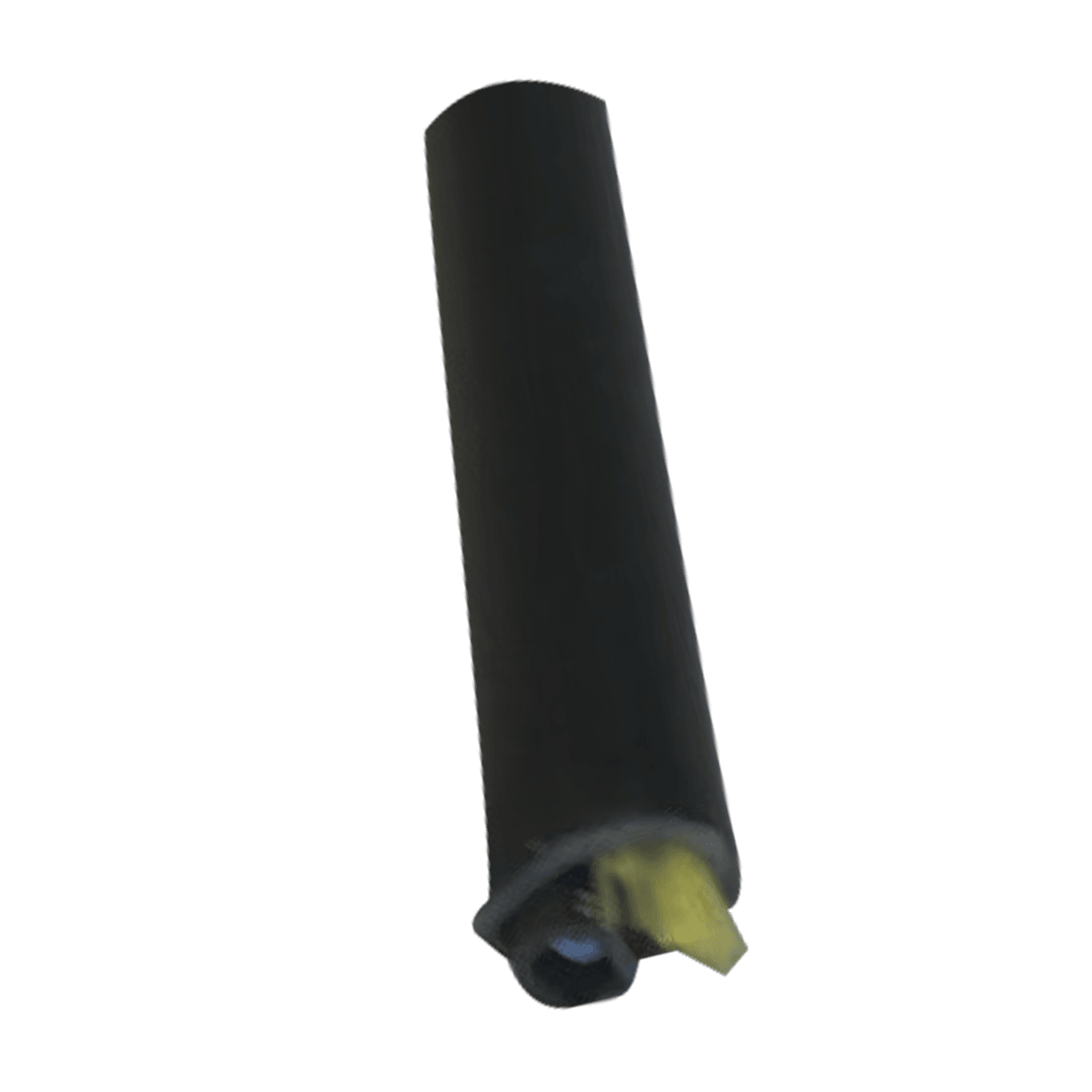

Center Tube Layer Microduct Optical Cable for Installation By Blowing

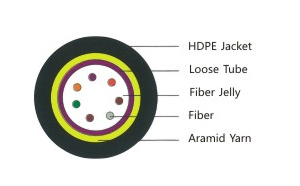

Geometrical Characteristics

Model

841

941

No.of fiber

2-12

12-24

Cable Dimension(mm)

3.6

4.2

Cable Weight(kg/km)

10.0

14.0

Mechanical Characteristics

Tensile Strength (N)

100

120

Crush Resistance (N/100mm)

800

Bending Radius (CM)

Dynamic

20xD(D:TBF Diameter)

Static

10xD(D:TBF Diameter)

Fiber

Fiber Type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300 (nm)

850/1300(nm)

Attenuation(db/km)

≤0.4/0.3

≤3.5/1.5

≤3.5/1.5

Minimum Bandwidth(MHz·km)

≥400/400

≥160/500

Environmental Characteristics

Storage Operating Temperature

-40℃~+70℃
