Characteristic:

◆Good mechanical and temperature performance;

◆High strength loose tube that is hydrolysis resistant;

◆Special tube filling compound ensure a critical protection of fiber;

◆Specially designed compact structure is good at preventing loose tubes from shrinking

◆PE/LSZH sheath protects cable from ultraviolet radiation

◆The following measures are taken to ensure the cable watertight:

- Steel wire and central FRP used as the strength member

- Loose tube filling compound

- 100%cable core filling

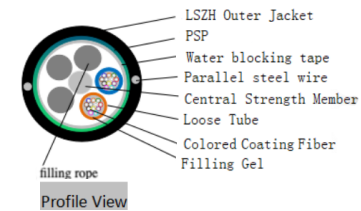

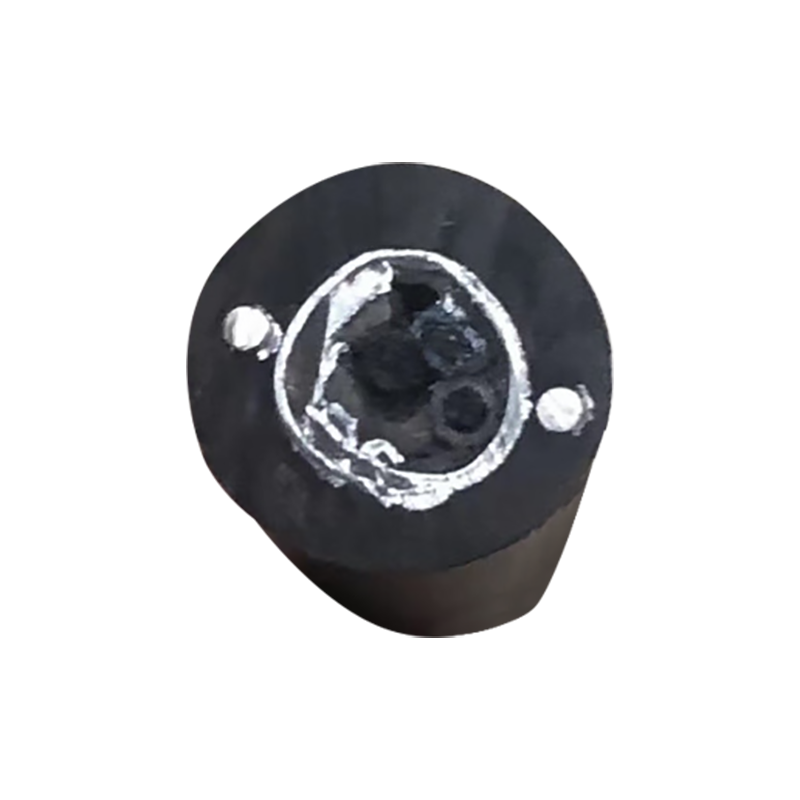

Cable Cross Section

Fiber Parameter
Core noncircularity	≤ 6
Cladding diameter	125.0±0.7μm
Core/cladding concentricity error	≤ 0.6μm
Cladding noncircularity	≤ 1.0
Coating diameter	245±10μm
Coating/cladding concentricity error	≤ 12μm
Attenuation coefficient	1310nm≤0.36dB/km
Attenuation coefficient	1550nm≤0.22dB/km
Zero dispersion slope	≤ 0.092ps/(nm2·km)
Zero dispersion wavelength	1300~1324nm
Polarization mode dispersion	≤ 0.20 ps/√km
Mode field diameter	1310nm：9.0±0.4μm
Cut-off wavelength	1170~1330nm
Chromatic dispersion	1288~1339nm≤3.4ps(nm·km)
	1550nm≤18 ps/(nm·km)
	1625nm≤22 ps/(nm·km)

Cable Structure
Type of fiber	G652D
No. of fiber	12
No. of Tube	2
No. of fiber per tube	6
Tube diameter	1.9 mm
Parallel steel wire diameter	1.0mm
Centre strength member diameter FRP	1.4 mm
Sheath thickness	2.0 mm
Cable diameter	10.0mm
Cable sectional area	95mm2
Cable weight	95kg/km
Material and material	LSZH
Cable performances
Long term tension	600N
Short term tension	1500N
Long term crush	300N
Short term crush	1000N
Minimum statics bending radius	10D
Minimum dynamic bending radius	20D
Installing temperature	-10℃~+40℃
Operating temperature	-40℃~+60℃
